V15-G-2M-PVC

V15-G-2M-PVC

SKU: SKU-KAN-178

₹720.00 Original price was: ₹720.00.₹576.00Current price is: ₹576.00.

In Stock

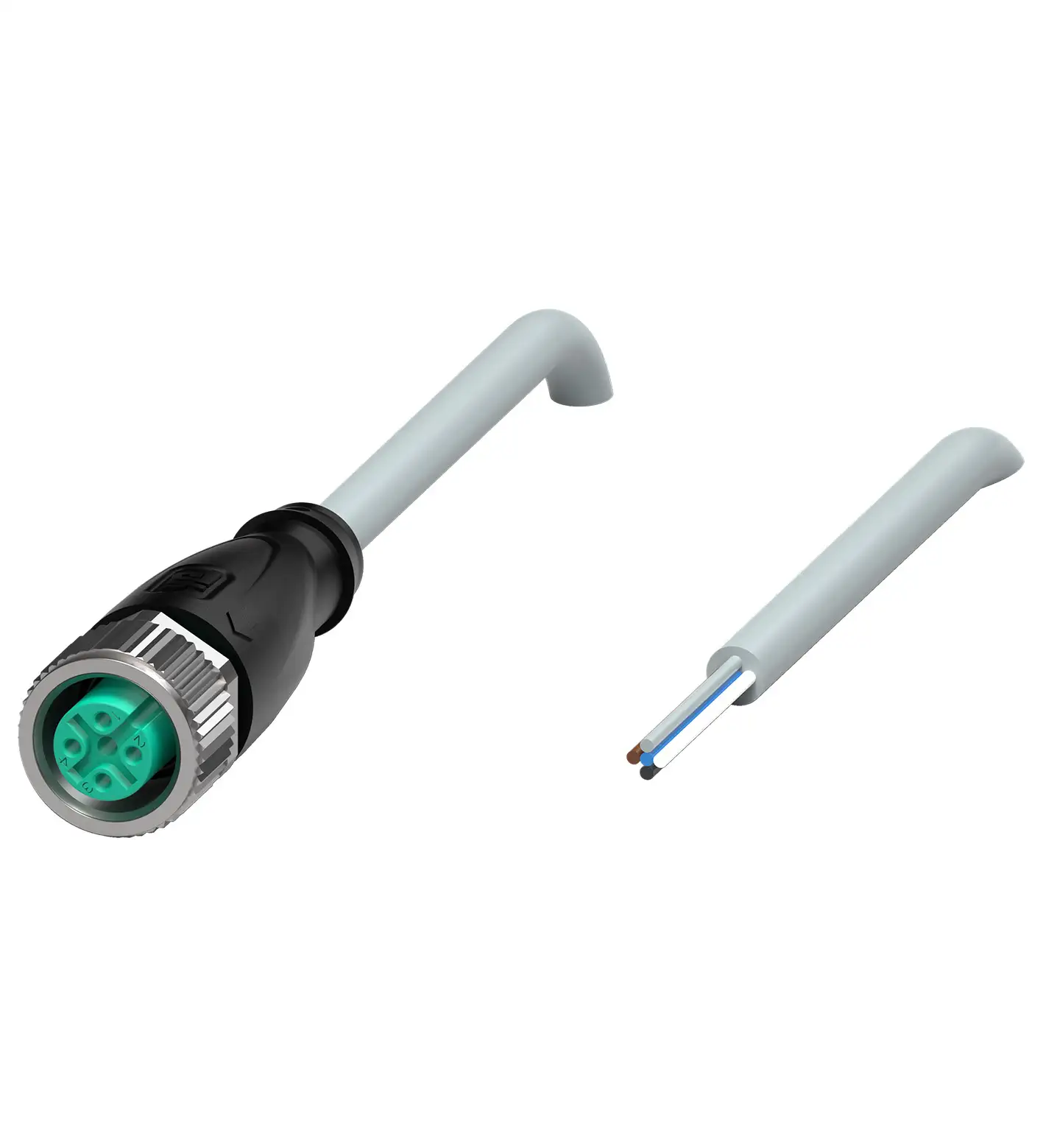

Single-ended M12 female cordset, straight, A-coded, 5-pin, with a 2 m grey PVC cable and open (pigtail) ends. IP66/IP68/IP69 rated.

In Stock
Connector Type

M12 x 1, straight, 5-pin, A-coded
Number of Pins / Cores

5-pin / 0.34 mm2 cores
Cable Length

2 m
Cable Termination (Other End)

Open (pigtail) wire ends
Cable Material

PVC, grey
Max Voltage Rating

48 V AC / 60 V DC
Max Current Rating

4 A
Degree of Protection (IP)

IP66 / IP68 / IP69
Operating Temperature Range

-40 to +90 degC (connector); -40 to +70 degC (fixed cable); -5 to +70 degC (flexing)
Weight

87.72 g
Mechanical / Special Features

Min. 100 mating cycles; zinc diecast connector, TPU body, FKM seal
Approvals / Standards

IEC 61076-2-101; EN 60529; RoHS
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
View Brochure
  Ask a Question
  • Type: Sensor Cordset (M12 Female Straight, 5-pin)
  • MFG: Pepperl+fuchs
SKU: SKU-KAN-178 Categories: , Brand:
Request Quote

Description

Single-ended M12 female cordset, straight, A-coded, 5-pin, with a 2 m grey PVC cable and open (pigtail) ends. IP66/IP68/IP69 rated.

Additional information

Connector Type

M12 x 1, straight, 5-pin, A-coded
Number of Pins / Cores

5-pin / 0.34 mm2 cores
Cable Length

2 m
Cable Termination (Other End)

Open (pigtail) wire ends
Cable Material

PVC, grey
Max Voltage Rating

48 V AC / 60 V DC
Max Current Rating

4 A
Degree of Protection (IP)

IP66 / IP68 / IP69
Operating Temperature Range

-40 to +90 degC (connector); -40 to +70 degC (fixed cable); -5 to +70 degC (flexing)
Weight

87.72 g
Mechanical / Special Features

Min. 100 mating cycles; zinc diecast connector, TPU body, FKM seal
Approvals / Standards

IEC 61076-2-101; EN 60529; RoHS
