V15-G-2M-PVC
Original price was: ₹720.00.₹576.00Current price is: ₹576.00.
V1-G-E2-2M-PUR
Original price was: ₹1,080.00.₹864.00Current price is: ₹864.00.20%
V1-G-2M-PUR
₹1,080.00 Original price was: ₹1,080.00.₹864.00Current price is: ₹864.00.

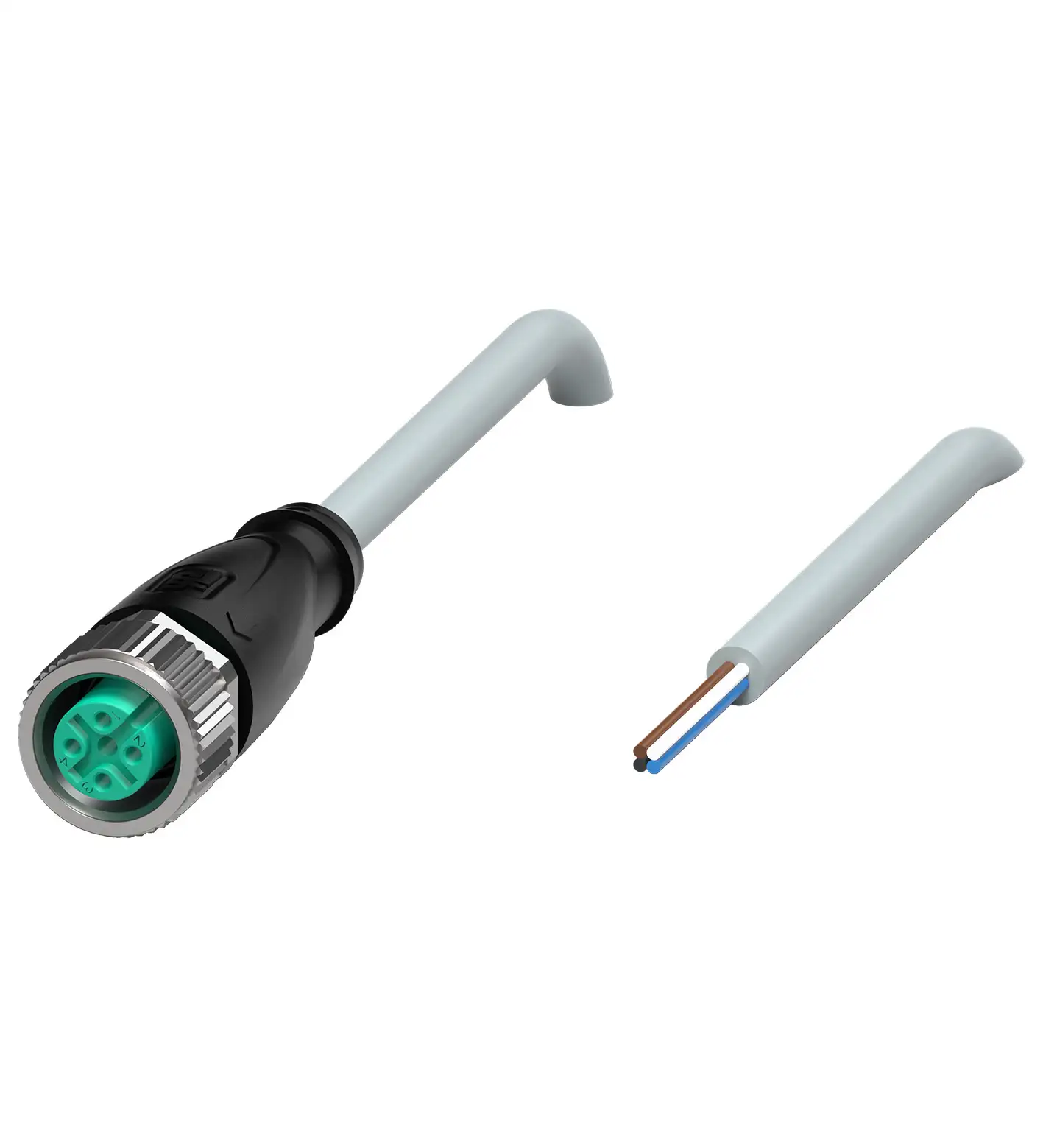

Single-ended M12 female cordset, straight, A-coded, 4-pin, with a 2 m grey PUR cable and open (pigtail) ends. Halogen-free, IP66/IP68/IP69 rated.
In Stock
| Connector Type | M12 x 1, straight, A-coded, 4-pin |
|---|---|
| Number of Pins / Cores | 4-pin / 0.34 mm2 cores |
| Cable Length | 2 m |
| Cable Termination (Other End) | Open (pigtail) wire ends |
| Cable Material | PUR, grey (RAL 7001), halogen-free |
| Max Voltage Rating | 250 V AC/DC |
| Max Current Rating | 4 A |
| Degree of Protection (IP) | IP66/IP68/IP69 |
| Operating Temperature Range | -40 to +90 degC (connector); -40 to +80 degC (fixed); -25 to +80 degC (flexing) |
| Weight | 70.8 g |
| Mechanical / Special Features | Min. 100 mating cycles |
Add to Wishlist
Add to Wishlist
- Type: Sensor Cordset (M12 Female Straight)
- MFG: Pepperl+fuchs
Description
Single-ended M12 female cordset, straight, A-coded, 4-pin, with a 2 m grey PUR cable and open (pigtail) ends. Halogen-free, IP66/IP68/IP69 rated.
Additional information
| Connector Type | M12 x 1, straight, A-coded, 4-pin |
|---|---|
| Number of Pins / Cores | 4-pin / 0.34 mm2 cores |
| Cable Length | 2 m |
| Cable Termination (Other End) | Open (pigtail) wire ends |
| Cable Material | PUR, grey (RAL 7001), halogen-free |
| Max Voltage Rating | 250 V AC/DC |
| Max Current Rating | 4 A |
| Degree of Protection (IP) | IP66/IP68/IP69 |
| Operating Temperature Range | -40 to +90 degC (connector); -40 to +80 degC (fixed); -25 to +80 degC (flexing) |
| Weight | 70.8 g |
| Mechanical / Special Features | Min. 100 mating cycles |
No more offers for this product!
General Inquiries
There are no inquiries yet.
Related products
20%
20%
20%
19%
Reviews
There are no reviews yet.
